Quality Aftermarket Auto Parts Driveshaft Companion Flange Spicer 5-1-3161 1610 Series
1.Item specs:
| Condition: | New | Brand: | SuperbIndustry |
| Surface Finish: | Heat treatment ,Rust Protected | Manufacturer Part No.: | SI5-1-3161 |

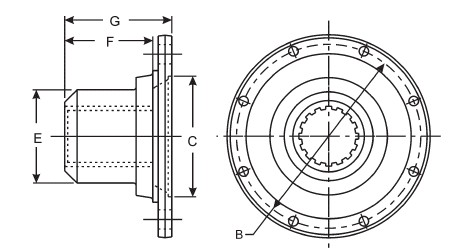

| Spline Major Diameter : | D=2.000'' | OE#/SPICER# | 5-1-3161 |
| Series : | 1610 | Spline Count: | 10.000 |
| Pilot Bore Diameter: | C=6.625''-F | Bolt Circle Diameter : | B=6.125'' |
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped) : | 0.375'' D | Number of Holes : | 8.000 |
| Brake Pilot Diameter : | 0.000'' | Ground Hub Diameter : | E=2.938''
|
| Length Thru Bore: | F=3.000'' | Flange Face to End of Hub: | G=3.625'' |
| Material: | Steel, Steel 45#/40Cr#, 60#, As per customers | Place of Origin: | China(mainland) |
| Warranty: | Two years | Manufacture method: | Forging or casting machining |
2.Packaging & Deliver
Packaging Details:PVC bag + Plywood box ,or as per customer request
Delivery Detail:30 - 45 days for fabrication
3.Advantage:
a. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability
b. Advanced equipments, professional &experienced designers
c. Fine quality with competitive price and timely delivery
d. Suit for various kinds of vehicles use
e. Perfect after - sale service system
5.See the Following Other Part No. For Your Reference:
A.WELD YOKE SERIES:
1-Weld Yoke 2-U JOINT 3-CENTER /H Yoke 4-Flange Yoke
Believe choosing us is the best choice!
